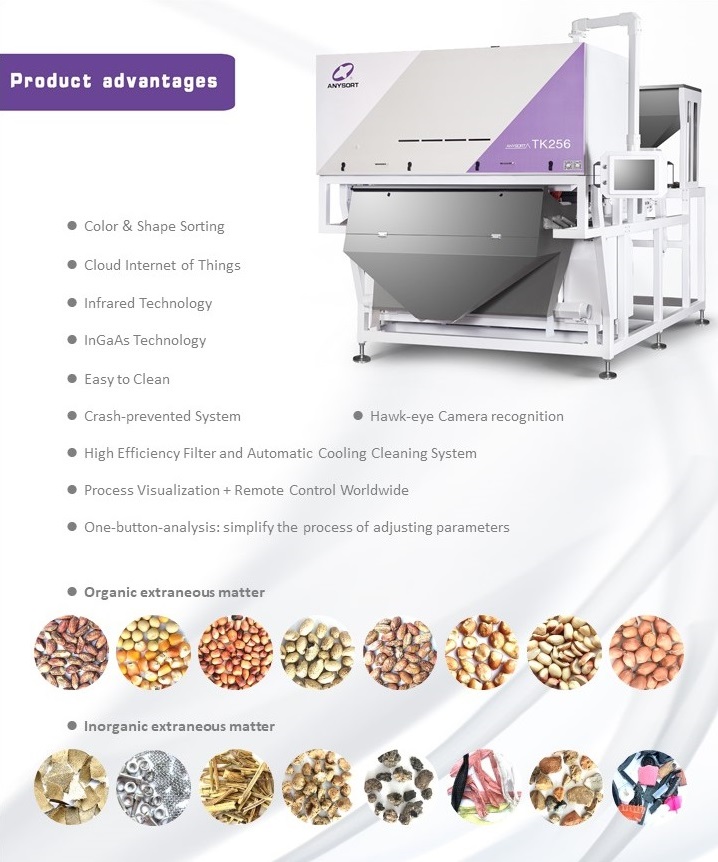

TK256 Peanut Color Sorter

The bionic Hawk-Eye four-color recognition technology, cloud intelligent rapid image acquisition and intelligent computing technology can realize the sorting of rust-yellow peanut, rust-gray peanut, inner mold peanut, frozen peanut, disease spot peanut, light color peanut and other impurities that cannot be accurately identified by traditional CCD color sorter,which perfectly achieves ultra-accuracy and ultra-low ratio rate.

  • Item NO.:

    TK256
  • Order(MOQ):

    1
  • Payment:

    L/C, D/P, T/T
  • Product Origin:

    Hefei, Anhui Province, China
  • Color:

    Metallic white and purple
  • Shipping Port:

    SHANGHAI

TK256 Peanut Color Sorter Description


1. High-dimensional material fingerprint perception technology, high-dimensional holographic fingerprint collection and analysis, accurate identification of glass, plastic, stone, earth blocks, straw, animal feces, different grains, slag and other foreign matter. Perception technology of quality sorting is beyond your imagination.


2. Identifying subtle shape differences on raw material intelligently:

Classifying long round, single/double, length, size, thickness, fat and thin peanuts. Leading the new era of intelligent shape sorting.


3. Intelligent quality sorting of peanuts with buds:

High-dimensional image acquisition and fusion positioning analysis of buds, combined with cloud brain integration algorithm, creates new buds identification technology,which is the expert of buds rejection nad creates a new era of buds sorting.

Peanut Colour Sorter


Model

Throughput

(t/h)

Air Consume

(m³/min)

Air Pressure

(Mpa)

Power

(kw)

Power

Supply

Dimension

L*W*H(mm)

Weight

(kg)

TK3842.0-12.0<3.60.6-0.84.50380V/50HZ3600*2680*24502950
TK2562.0-10.0<2.40.6-0.83.23380V/50HZ3600*2040*24502130
TK1281.0-5.0<1.20.6-0.82.15380V/50HZ3600*1400*24501120
TK384R2.0-12.0<3.60.6-0.84.50380V/50HZ3600*2680*24502950
TK256R2.0-10.0<2.40.6-0.83.23380V/50HZ3600*2040*24502130
TK128R1.0-5.0<1.20.6-0.82.15380V/50HZ3600*1400*24501120
