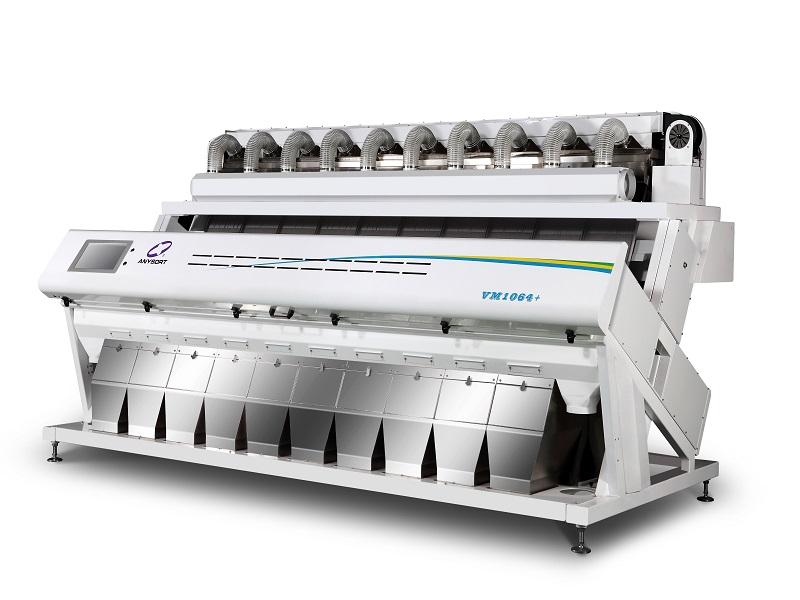

VM1064 Grain Color Sorter

VM1064 multi-functional optical sorter is an expert in grading various grain and cereals. It's 10 chutes installed and is for large quantity producers.

  • Item NO.:

    VM1064
  • Order(MOQ):

    1
  • Payment:

    L/C, D/P, T/T
  • Product Origin:

    Hefei, Anhui Province, China
  • Color:

    Metallic white
  • Shipping Port:

    SHANGHAI

VM1064 Grain Color Sorter Introduction:

VM1064 is applied for multi grain sorting function, including coffee beans, grains, nuts, corn kernels and etc. Its 64 channels plus 10 chutes and especially for large grain producers. Better configuration, bigger capacity.


VM1064 Grain Color Sorter Features:

1.Cloud Internet of Things

Real-time online service, online technical support, online fault diagnosis, online data collection, software upgrade, data exchange and operation management.

2. AI intelligent valve (with high sorting accuracy)

With self-adaptive and self-regulate switching frequency, can achieve high blowing accuracy and the lowest grain damage ratio.

3.Cloud Intelligent Remote Control

Easy to be connected with various terminals. Remote control and timely response realize remote operation.


Grain Sorter Machine


Type Standard Throughput(T/h) Sorting Accuracy(%) Optimized CarryoverPower (kw)Power Supply

Dimension

L×W×H(mm)


Weight

(kg

气源消耗(m³/min) Air compressor(KW)  (0.6~0.8MPa)Fan motor(m³/h)Fan compressor(Pa)Fan Power(kw)
VM164+ DB34/T 1395-2015 0.5-2 ≥99.5 >10:1 1.5 220V/50HZ 1530*1840*2050 792 <1.0≥7.5≥2500≥2500 2kw
VM264+ DB34/T 1395-2015 0.5-3 ≥99.5 >10:1 1.8 220V/50HZ 1530*1840*2050 958 <1.5≥11≥3200≥3000 3kw
VM364+ DB34/T 1395-2015 1.0-4 ≥99.5 >10:1 3.5 220V/50HZ 1870*1840*2050 1100 <1.8≥18.5≥3200≥3000 3kw
VM464+ DB34/T 1395-2015 2.0-8 ≥99.5 >10:1 4 220V/50HZ 2210*1840*2050 1270 <2.1≥22≥3800≥3500 5.5kw
VM564+ DB34/T 1395-2015 5.0-15 ≥99.5 >10:1 4.6 220V/50HZ 2550*1840*2050 1350 <2.4≥22≥3800≥3500 5.5kw
VM664+ DB34/T 1395-2015 5.0-18≥99.5 >10:1 5.5 220V/50HZ 2890*1840*2050 1580 <2.7≥30≥4800≥3500 7.5kw
VM764+ DB34/T 1395-2015 5.5-20≥99.5 >10:1 6 220V/50HZ 3230*1840*2050 1850 <3.0≥30≥4800≥3500 7.5kw
VM864+ DB34/T 1395-2015 6.0-22 ≥99.5 >10:1 7.5 220V/50HZ 3570*1840*2050 2050 <3.3≥30≥4800≥3500 7.5kw
VM964+ DB34/T 1395-2015 7.0-25≥99.5 >10:1 8 220V/50HZ 3910*1840*2050 2220 <3.6≥37≥6800≥3500 11kw
VM1064+ DB34/T 1395-2015 7.0-28 ≥99.5 >10:1 9 220V/50HZ 4250*1840*2050 2410 <3.9≥37≥6800≥3500 11kw
