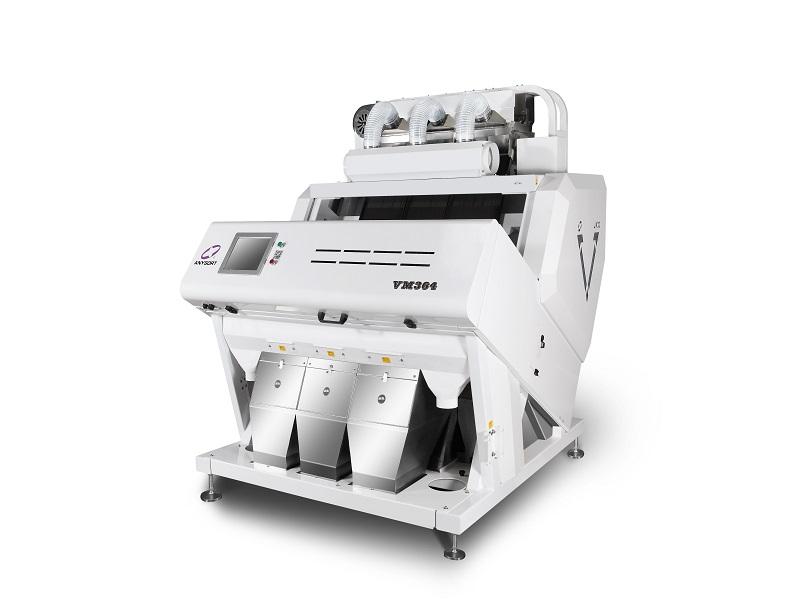

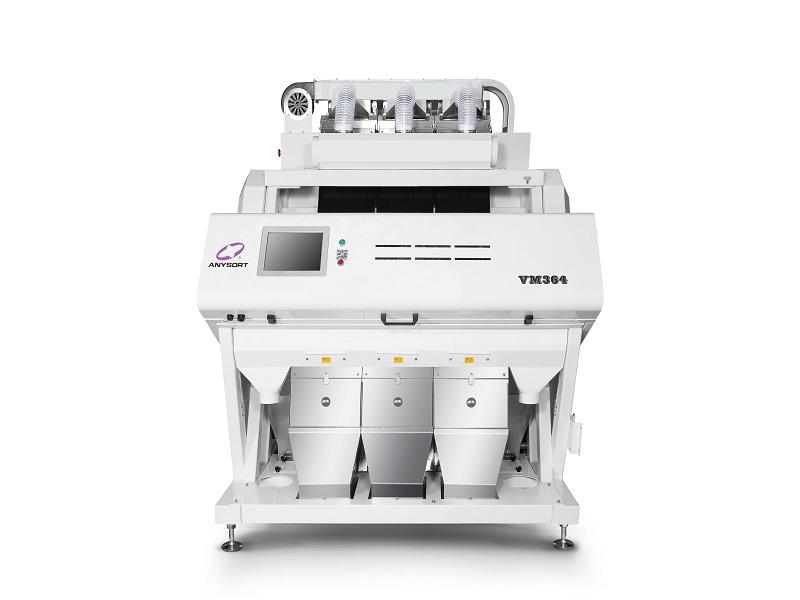

This VM364 is tiny but mighty for small producers.
Item NO.:
VM364Order(MOQ):
1Payment:
L/C, D/P, T/TProduct Origin:
Hefei, Anhui Province, ChinaColor:
Metallic whiteShipping Port:
SHANGHAIshare to:
VM364 Grain Color Sorter Introduction:
VM364 is applied for multi-grain sorting function, including coffee beans, grains, nuts, corn kernels and etc. Its 64 channels plus 3 chutes.
Food materials:
Such as: Rice, Wheat, Corn, Soybean, Peanut, Sunflower seeds, Walnut, Almond, Quinoa, Salt, Medlar, Pistachio, Kidney bean, Chili, Red bean, dehydrated vegetables and wide range of tea.
VM364 Grain Color Sorter Features:
1. AI cloud interconnection
Multi-machine interconnection, multi-use fusion, one machine in use and multi-machine collaboration
2. Hawk-eye recognition
It perfectly shows HD scanning, accurate identification and high computing.
3. Smart IoT
Upstream and downstream facilities intelligently connect and interact with each other, and constitute the Internet of Things to detect their status in real time and supervise their operation intelligently, creating a perceivable, synergistic and real-time all online smart production line for worry-free production.
| Type | Standard | Throughput（T/h） | Sorting Accuracy（%） | Optimized Carryover | Power (kw) | Power Supply | Dimension L×W×H(mm) | Weight (kg | 气源消耗（m³/min） | Air compressor(KW) （0.6~0.8MPa） | Fan motor（m³/h） | Fan compressor（Pa） | Fan Power（kw） |
| VM164 | DB34/T 1395-2015 | 0.5-2 | ≥99.5 | ＞10:1 | 1.5 | 220V/50HZ | 1530*1840*2050 | 792 | ＜1.0 | ≥7.5 | ≥2500 | ≥2500 | 2kw |
| VM264 | DB34/T 1395-2015 | 0.5-3 | ≥99.5 | ＞10:1 | 1.8 | 220V/50HZ | 1530*1840*2050 | 958 | ＜1.5 | ≥11 | ≥3200 | ≥3000 | 3kw |
| VM364 | DB34/T 1395-2015 | 1.0-4 | ≥99.5 | ＞10:1 | 3.5 | 220V/50HZ | 1870*1840*2050 | 1100 | ＜1.8 | ≥18.5 | ≥3200 | ≥3000 | 3kw |
| VM464 | DB34/T 1395-2015 | 2.0-8 | ≥99.5 | ＞10:1 | 4 | 220V/50HZ | 2210*1840*2050 | 1270 | ＜2.1 | ≥22 | ≥3800 | ≥3500 | 5.5kw |
| VM564 | DB34/T 1395-2015 | 5.0-15 | ≥99.5 | ＞10:1 | 4.6 | 220V/50HZ | 2550*1840*2050 | 1350 | ＜2.4 | ≥22 | ≥3800 | ≥3500 | 5.5kw |
| VM664 | DB34/T 1395-2015 | 5.0-18 | ≥99.5 | ＞10:1 | 5.5 | 220V/50HZ | 2890*1840*2050 | 1580 | ＜2.7 | ≥30 | ≥4800 | ≥3500 | 7.5kw |
| VM764 | DB34/T 1395-2015 | 5.5-20 | ≥99.5 | ＞10:1 | 6 | 220V/50HZ | 3230*1840*2050 | 1850 | ＜3.0 | ≥30 | ≥4800 | ≥3500 | 7.5kw |
| VM864 | DB34/T 1395-2015 | 6.0-22 | ≥99.5 | ＞10:1 | 7.5 | 220V/50HZ | 3570*1840*2050 | 2050 | ＜3.3 | ≥30 | ≥4800 | ≥3500 | 7.5kw |
| VM964 | DB34/T 1395-2015 | 7.0-25 | ≥99.5 | ＞10:1 | 8 | 220V/50HZ | 3910*1840*2050 | 2220 | ＜3.6 | ≥37 | ≥6800 | ≥3500 | 11kw |
| VM1064 | DB34/T 1395-2015 | 7.0-28 | ≥99.5 | ＞10:1 | 9 | 220V/50HZ | 4250*1840*2050 | 2410 | ＜3.9 | ≥37 | ≥6800 | ≥3500 | 11kw |
