VM564 series multi-functional optical sorter are experts in grading various grain. It's suitable for medium producers.
Item NO.:
VM564Order(MOQ):
1Payment:
L/C, D/P, T/TProduct Origin:
Hefei, Anhui Province, ChinaColor:
Metallic whiteShipping Port:
SHANGHAIshare to:

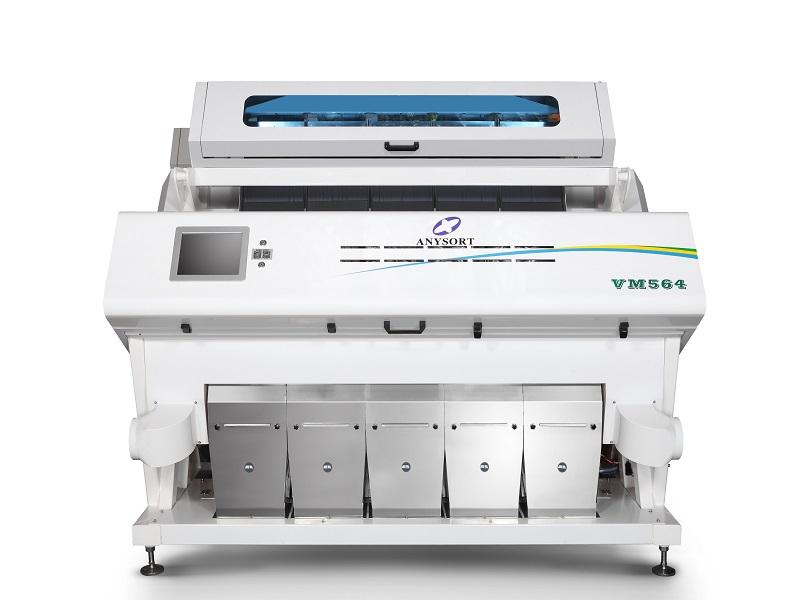

VM564 Grain Color Sorter Introduction:
VM564 is applied for multi-grain sorting function, including coffee beans, grains, nuts, corn kernels and etc. It's 64 channels plus 5 chutes.
Food materials:
Such as: Rice, Wheat, Corn, Soybean, Peanut, Sunflower seeds, Walnut, Almond, Quinoa, Salt, Medlar, Pistachio, Kidney bean, Chili, Red bean, dehydrated vegetables and wide range of tea.
VM564 Grain Color Sorter Features:
1. AI cloud interconnection
Multi-machine interconnection, multi-use fusion, one machine in use and multi-machine collaboration
2. Hawk-eye recognition
It perfectly shows HD scanning, accurate identification and high computing.
3.Cloud Intelligent Remote Control
Easy to be connected with various terminals. Remote control and timely response realize remote operation
| Type | Standard | Throughput（T/h） | Sorting Accuracy（%） | Optimized Carryover | Power (kw) | Power Supply | Dimension L×W×H(mm) | Weight (kg | 气源消耗（m³/min） | Air compressor(KW) （0.6~0.8MPa） | Fan motor（m³/h） | Fan compressor（Pa） | Fan Power（kw） |
| VM164 | DB34/T 1395-2015 | 0.5-2 | ≥99.5 | ＞10:1 | 1.5 | 220V/50HZ | 1530*1840*2050 | 792 | ＜1.0 | ≥7.5 | ≥2500 | ≥2500 | 2kw |
| VM264 | DB34/T 1395-2015 | 0.5-3 | ≥99.5 | ＞10:1 | 1.8 | 220V/50HZ | 1530*1840*2050 | 958 | ＜1.5 | ≥11 | ≥3200 | ≥3000 | 3kw |
| VM364 | DB34/T 1395-2015 | 1.0-4 | ≥99.5 | ＞10:1 | 3.5 | 220V/50HZ | 1870*1840*2050 | 1100 | ＜1.8 | ≥18.5 | ≥3200 | ≥3000 | 3kw |
| VM464 | DB34/T 1395-2015 | 2.0-8 | ≥99.5 | ＞10:1 | 4 | 220V/50HZ | 2210*1840*2050 | 1270 | ＜2.1 | ≥22 | ≥3800 | ≥3500 | 5.5kw |
| VM564 | DB34/T 1395-2015 | 5.0-15 | ≥99.5 | ＞10:1 | 4.6 | 220V/50HZ | 2550*1840*2050 | 1350 | ＜2.4 | ≥22 | ≥3800 | ≥3500 | 5.5kw |
| VM664 | DB34/T 1395-2015 | 5.0-18 | ≥99.5 | ＞10:1 | 5.5 | 220V/50HZ | 2890*1840*2050 | 1580 | ＜2.7 | ≥30 | ≥4800 | ≥3500 | 7.5kw |
| VM764 | DB34/T 1395-2015 | 5.5-20 | ≥99.5 | ＞10:1 | 6 | 220V/50HZ | 3230*1840*2050 | 1850 | ＜3.0 | ≥30 | ≥4800 | ≥3500 | 7.5kw |
| VM864 | DB34/T 1395-2015 | 6.0-22 | ≥99.5 | ＞10:1 | 7.5 | 220V/50HZ | 3570*1840*2050 | 2050 | ＜3.3 | ≥30 | ≥4800 | ≥3500 | 7.5kw |
| VM964 | DB34/T 1395-2015 | 7.0-25 | ≥99.5 | ＞10:1 | 8 | 220V/50HZ | 3910*1840*2050 | 2220 | ＜3.6 | ≥37 | ≥6800 | ≥3500 | 11kw |
| VM1064 | DB34/T 1395-2015 | 7.0-28 | ≥99.5 | ＞10:1 | 9 | 220V/50HZ | 4250*1840*2050 | 2410 | ＜3.9 | ≥37 | ≥6800 | ≥3500 | 11kw |
