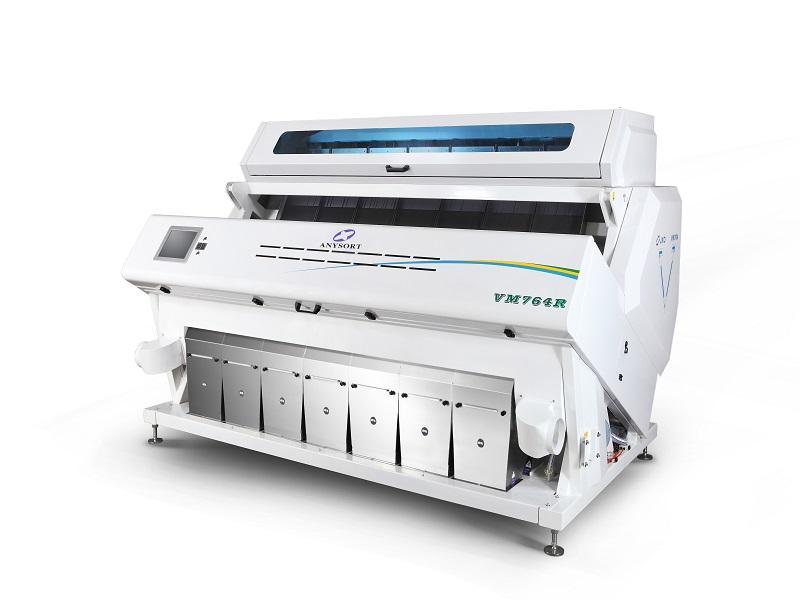

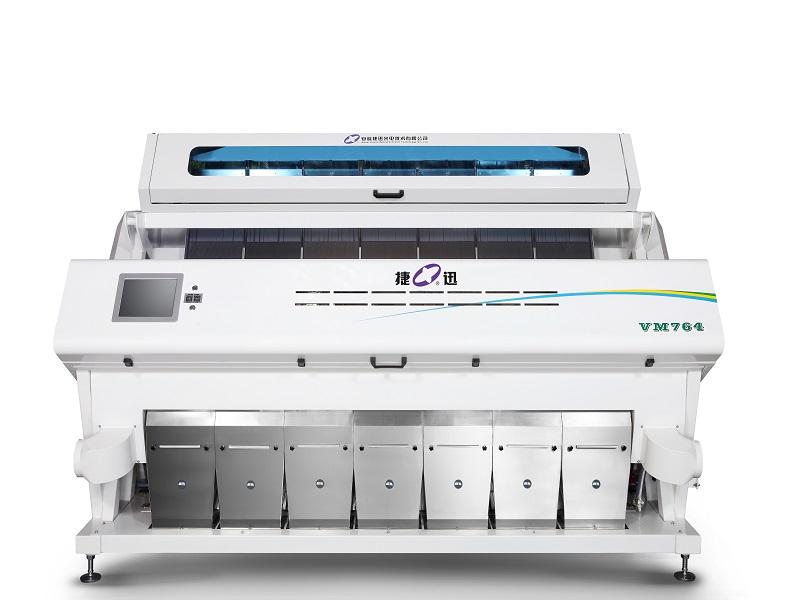

VM764 multi-functional optical sorter is an expert in grading various grain and cereals. It's 7 chutes installed and is for large quantity producers.
Item NO.:
VM764Order(MOQ):
1Payment:
L/C, D/P, T/TProduct Origin:
Hefei, Anhui Province, ChinaColor:
Metallic whiteShipping Port:
SHANGHAIshare to:
VM764 Grain Color Sorter Introduction:
VM764 is applied for multi grain sorting function, including coffee beans, grains, nuts, corn kernels and etc. It's 64 channels plus 7 chutes.
VM764 Grain Color Sorter Features:
1. Cloud Intelligence
By utilizing incomparable arithmetic, analysis and control abilities of the intelligent cloud brain, one button cloud technology enables adaptive computing, learning, decision-making and control in color sorting. In an intelligent way, it can identify, analyze, calculate the impurity percentage, and adjust operation data and set sorting standard flexibly, thus realizing intelligent computing and control.
2.Cloud Connection
Real-time connection with the cloud and timely update and optimization of system algorithm create an era of Zero-distance Service.
3.Cloud Intelligent Remote Control
Easy to be connected with various terminals. Remote control and timely response realize remote operation
| Type | Standard | Throughput（T/h） | Sorting Accuracy（%） | Optimized Carryover | Power (kw) | Power Supply | Dimension L×W×H(mm) | Weight (kg | 气源消耗（m³/min） | Air compressor(KW) （0.6~0.8MPa） | Fan motor（m³/h） | Fan compressor（Pa） | Fan Power（kw） |
| VM164+ | DB34/T 1395-2015 | 0.5-2 | ≥99.5 | ＞10:1 | 1.5 | 220V/50HZ | 1530*1840*2050 | 792 | ＜1.0 | ≥7.5 | ≥2500 | ≥2500 | 2kw |
| VM264+ | DB34/T 1395-2015 | 0.5-3 | ≥99.5 | ＞10:1 | 1.8 | 220V/50HZ | 1530*1840*2050 | 958 | ＜1.5 | ≥11 | ≥3200 | ≥3000 | 3kw |
| VM364+ | DB34/T 1395-2015 | 1.0-4 | ≥99.5 | ＞10:1 | 3.5 | 220V/50HZ | 1870*1840*2050 | 1100 | ＜1.8 | ≥18.5 | ≥3200 | ≥3000 | 3kw |
| VM464+ | DB34/T 1395-2015 | 2.0-8 | ≥99.5 | ＞10:1 | 4 | 220V/50HZ | 2210*1840*2050 | 1270 | ＜2.1 | ≥22 | ≥3800 | ≥3500 | 5.5kw |
| VM564+ | DB34/T 1395-2015 | 5.0-15 | ≥99.5 | ＞10:1 | 4.6 | 220V/50HZ | 2550*1840*2050 | 1350 | ＜2.4 | ≥22 | ≥3800 | ≥3500 | 5.5kw |
| VM664+ | DB34/T 1395-2015 | 5.0-18 | ≥99.5 | ＞10:1 | 5.5 | 220V/50HZ | 2890*1840*2050 | 1580 | ＜2.7 | ≥30 | ≥4800 | ≥3500 | 7.5kw |
| VM764+ | DB34/T 1395-2015 | 5.5-20 | ≥99.5 | ＞10:1 | 6 | 220V/50HZ | 3230*1840*2050 | 1850 | ＜3.0 | ≥30 | ≥4800 | ≥3500 | 7.5kw |
| VM864+ | DB34/T 1395-2015 | 6.0-22 | ≥99.5 | ＞10:1 | 7.5 | 220V/50HZ | 3570*1840*2050 | 2050 | ＜3.3 | ≥30 | ≥4800 | ≥3500 | 7.5kw |
| VM964+ | DB34/T 1395-2015 | 7.0-25 | ≥99.5 | ＞10:1 | 8 | 220V/50HZ | 3910*1840*2050 | 2220 | ＜3.6 | ≥37 | ≥6800 | ≥3500 | 11kw |
| VM1064+ | DB34/T 1395-2015 | 7.0-28 | ≥99.5 | ＞10:1 | 9 | 220V/50HZ | 4250*1840*2050 | 2410 | ＜3.9 | ≥37 | ≥6800 | ≥3500 | 11kw |
